Karcham Wangtoo Hydroelectric Project, Kinnaur

A Sutlej diversion from the Baspa confluence to Wangtoo

At a glance

Location
Karcham to Wangtoo, Kinnaur
How to reach
NH5 from Tapri or Reckong Peo
Walking difficulty
Public approaches and designated viewpoints

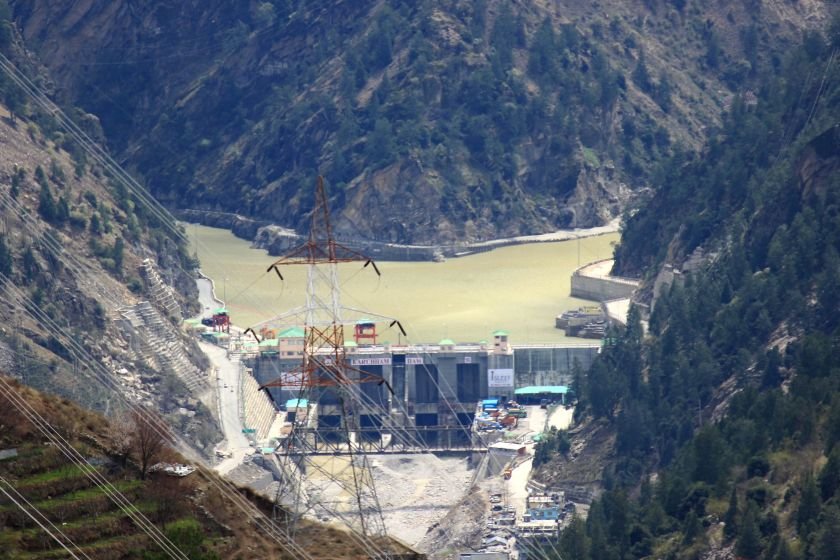

At Karcham, a dam turns Sutlej water into a long tunnel towards an underground power station near Wangtoo. The dam and the generating station lie on different stretches of the valley road.

🌄 Location and how to reach it

Karcham stands where the Baspa meets the Sutlej and where the road branches for Sangla. Wangtoo lies farther downstream on the main Sutlej road. Choose one public stop at a time, especially if you are combining the valley drive with a trip to Sangla.

Google Maps: Map the approach

  • By road: Use NH5 from Tapri or Reckong Peo. Ask about road conditions and legal pull-offs before leaving town, especially if recent rain affected the gorge.
  • By public transport: Check whether a bus towards Reckong Peo stops in the part of the corridor you want to see. Confirm where you can safely wait for a return.
  • On foot: Use public roads or village lanes. Ask the operator about any formal visit before trying to approach a dam, powerhouse or tunnel entrance.

⚙️ From river intake to underground turbines

A headrace tunnel carries diverted water from the Karcham dam to the generating station. The descent to the turbines converts the change in elevation into pressure. Water passes through four units, then returns to the river downstream. Follow the river on a map to see how different the water’s engineered route is from the highway.

🔌 Reading the capacity figures

The original rating was 1,000 MW. In 2021 the CEA considered an increase in two steps, with 1,045 MW first and a possible 1,091 MW after observing plant performance. The August 2026 CEA inventory gives 1,045 MW, while JSW’s plant profile gives 1,091 MW. Both published figures are useful when read with their sources.

🧭 Two projects at the junction

Baspa II uses the Baspa River from the Sangla side and has its own generating station near Karcham. The two schemes are easy to confuse because they share an operator and meet around the same confluence.
